LRC Recipe Control Unit

LRC200
LPi_analog_in  LPi_firmware-serial  LPi_serial_232  LPi_serial-485  LPi_multiconnection  LPi_firmware-eCal  LPi_temp
LPi_temp  LPi_ROHSII  LPi_firmware-CW  LPi_firmware-HS  LPi_firmware-Batch  LPi_ROHSII

youtubeLogo Add PROFINET connection in 9 minutes

The LRC Recipe Mixing Device is an advanced automation solution designed to provide maximum accuracy, repeatability, and speed in production processes. Developed for preparing different recipes with precise ratios and transferring premixes to filling lines in a controlled manner, this device meets the high efficiency and quality standards required by modern industrial facilities. The system minimizes human errors in production and simplifies process management with its operator-friendly interface, flexible recipe management, automatic dosing algorithms, and real-time monitoring features. The device performs weighing, mixing, and liquid/solid filling operations for various raw materials with high precision, and its adaptability to both small and large-scale production lines offers a wide range of applications.

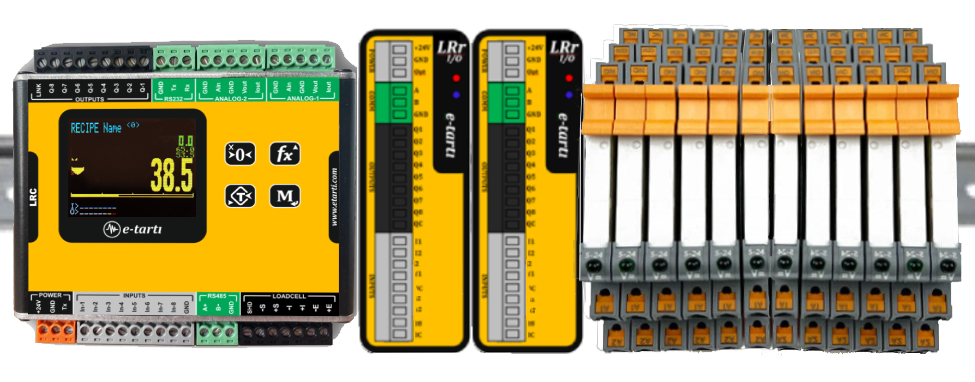

LRCR200withPLC

Specifications

  • Ability to prepare 6, 14, or 22 different product mixtures
  • Material dosing at the specified quantity
  • Traceable speed, flow rate, and distributed load indicators
  • 3840 measurements per second
  • Modbus RTU/ASCII
  • Modbus TCP communication *
  • PROFINET dual-port communication *
  • Dual 0-10V / 4-20mA analog output
  • External display output
*Option

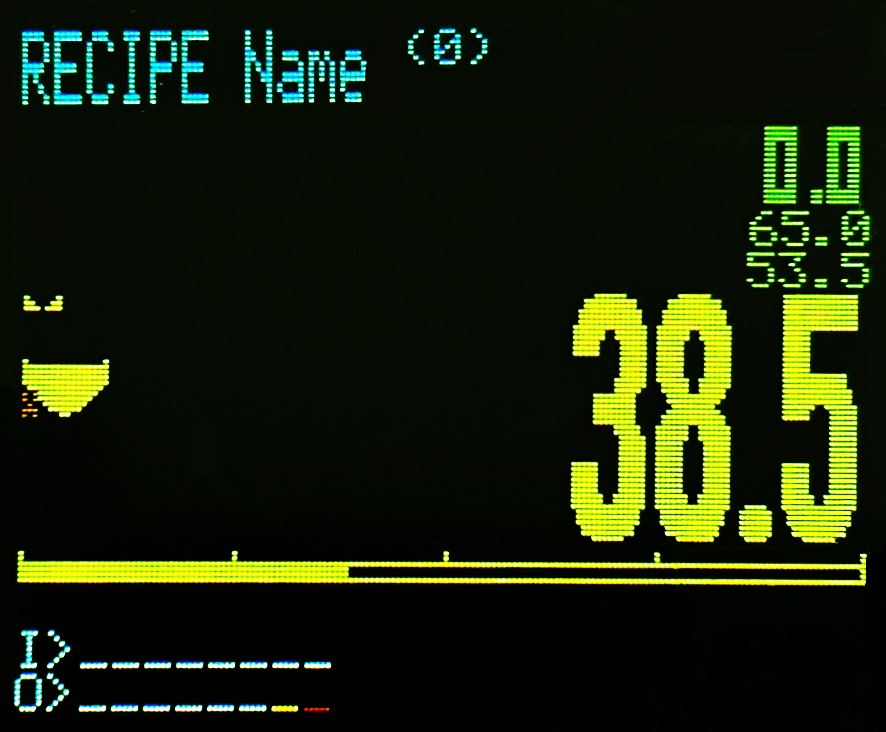

LPR_LCD Computer  Remote



pdf LRC Recipe Controller brochure
pdf LRC Technical Manuel
pdf LRC User Manual
pdf LRC Quick Manual
stepLRC Profinet XML

Technical Specifications

DEVICE

Display 2.0″ 160x128 pixel color graphic OLED LCD
Keypad
4pcs tactile keypad
Status Indicators
Filling animation, status, standstill (stable) symbols
Inputs 8 pcs

A/D Converter

Minimum Input 0.02uV/Division
Loadcell
350-1000 Ohm  (Maximum 10 Loadcell)
Internal Resolution
24bits / 16.000.000
Measurement Speed
3840 samples/sc
Loadcell Supply
5Vdc

Calibration

Calibration Type
Calibration with load or digital calibration. Automatic zeroing feature

Options

Digital Outputs 8pcs 24V1A Digital (FET type) Output
Digital Inputs 8adet Optically Isolated Digital Inputs
Analog Inputs 2 pcs 0-10V analog inputs
Analog Outputs
2 pcs 0-10V, 2pcs 4/20mA Analog Outputs (12bits or 16bits Resolution)

Communication

Serial Output-1
1pcs RS232 Serial Output. 1200-115200bps Modbus RTU/ASCII communication or Remote Display Output
Serial Output-2
 1pcs RS485 Serial Output. 1200-115200bps Modbus RTU/ASCII communication or Remote Display Output
Serial Output-3
 1pcs RS232 Serial Output. 1200-115200bps Remote Display only
Ethernet
*Optional 10/100mbps modbusTCP or Dual port PROFINET connection

Working Conditions

Power Supply 24Vdc (+/- % 10) / 5W maximum (Optional 6V-9V-12V supply options)
Case
Din Rail Type Aluminium Case
Working Temperature
-20/70°C
Dimensions 100x104x35mm (WxLxH)
IP Class IP54

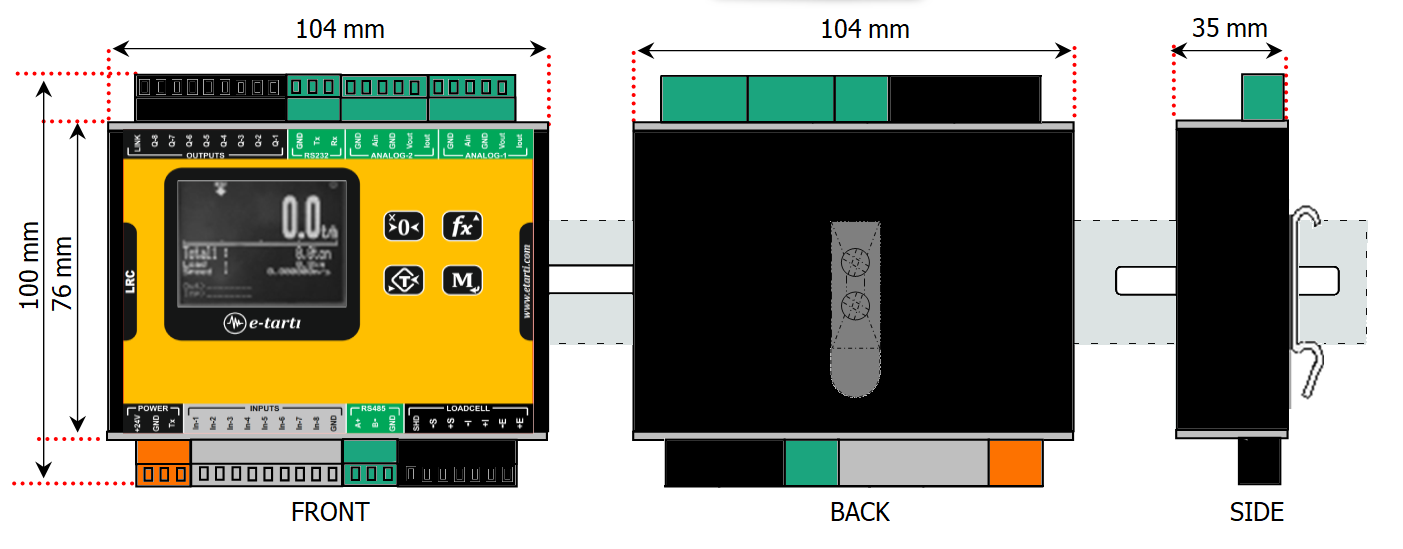

Dimensions

LRCCase
